K-set trains

Control motor carriage

Seating capacity	106
Builder	Goninan
Introduced to service	1981-1985
Number	80
Weight	47 tonnes
Length	20,385mm
Width	3,036mm
Height	4,368mm

Trailer carriage

Seating capacity	118
Builder	Goninan
Introduced to service	1981-1985
Number	80
Weight	47 tonnes
Length	20,385mm
Width	3,036mm
Height	4,368mm

Features

• Wheelchair accessible entrances (width 82cm)
• Symbol on accessible entrances (some)
• Wheelchair space in end of carriage
• Wheelchair access to seating area
• Allocated wheelchair spaces (some)
• Priority seating (some)
• Audio information announcements
• Colour contrasted yellow doors
• Announcements when door close
• Warning tone when doors close (some)
• Air conditioning

Millennium trains

Control trailer carriage

Seating capacity	101
Builder	EDI Rail
Introduced to service	2002-2005
Number	71
Weight	49.5 tonnes
Length	20,532mm
Width	3,030mm
Height	4,381mm

Non-control motor carriage

Seating capacity	122
Builder	EDI Rail
Introduced to service	2002-2005
Number	70
Weight	54 tonnes
Length	20,243mm
Width	3,030mm
Height	4,381mm

Features

• Wheelchair accessible entrances
• Wheelchair space in end of carriage
• Wheelchair access to seating area
• Allocated wheelchair spaces
• Priority seating
• Electronic information screens
• Audio information announcements
• Hearing induction loop (with T-switch)
• Emergency Help Point
• Colour contrasted yellow doors
• Announcement when doors close
• Warning tone when doors close
• Air-conditioning

Tangara trains

Control motor carriage

Seating capacity	98
Builder	Goninan
Introduced to service	1988-1995
Number	225
Weight	42 tonnes
Length	20,320mm
Width	3,000mm
Height	4,413mm

Motor carriage

Seating capacity	112
Builder	Goninan
Introduced to service	1988-1995
Number	222
Weight	50 tonnes
Length	20,220mm
Width	3,000mm
Height	4,413mm

Features

• Wheelchair accessible entrances
• Wheelchair space in the end of the carriage
• Wheelchair access to seating area
• Priority seating
• Audio information announcements
• Emergency Help Point
• Colour contrasted yellow doors
• Announcements when doors close
• Warning tone when doors close
• Air conditioning

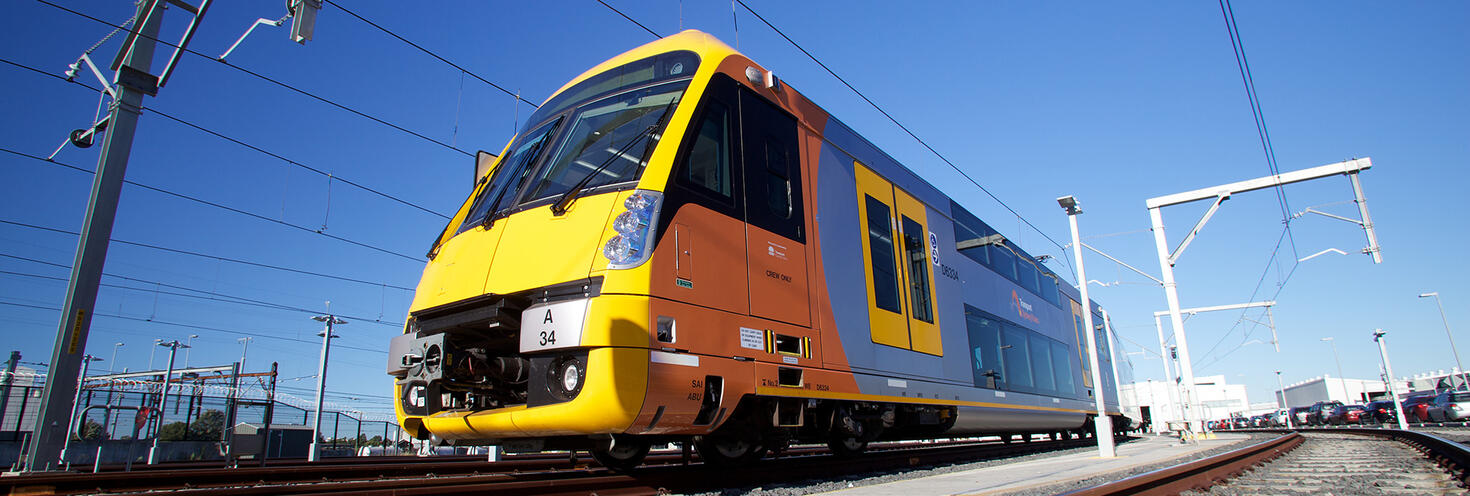

Waratah trains

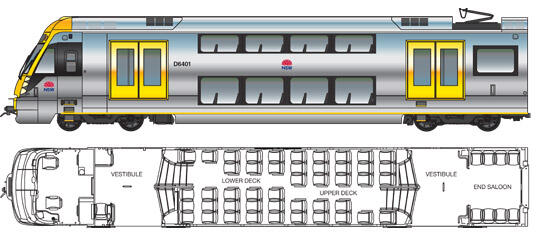

Trailer driving carriage

Seating capacity	101
Builder	Reliance Rail (Series 2: Changchun Railway Vehicles)
Introduced to service	2011 (Series 2: 2018)
Number	158 (Series 2: 48 at project completion)
Weight	51 tonnes (approx.)
Length	20,000mm
Width	3,035mm
Height	4,410mm

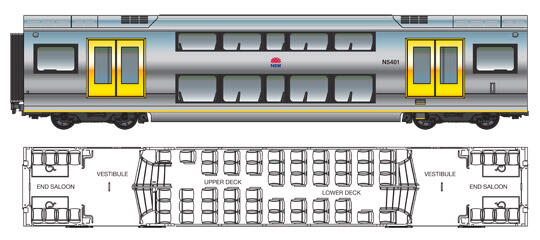

Motor carriage

Seating capacity	118
Builder	Reliance Rail (Series 2: Changchun Railway Vehicles)
Introduced to service	2011 (Series 2: 2018)
Number	312 (Series 2: 96 at project completion)
Weight	51 tonnes (approx.)
Length	19,393mm
Width	3,035mm
Height	4,410mm

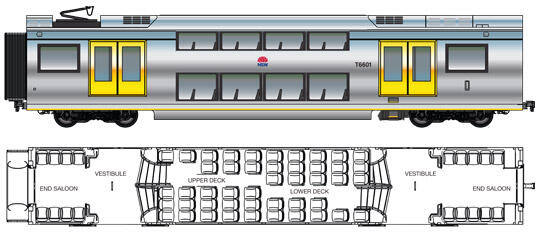

Trailer carriage

Seating capacity	110
Builder	Reliance Rail (Series 2: Changchun Railway Vehicles)
Introduced to service	2011 (Series 2: 2018)
Number	156 (Series 2: 96 at project completion)
Weight	48 tonnes (approx.)
Length	19,482mm
Width	3,035mm
Height	4,410mm

Features

• Portable boarding ramp
• Wheelchair accessible entrances
• Symbol on accessible entrances
• Wheelchair space in end of carriage
• Wheelchair access to seating area
• Allocated wheelchair spaces
• Priority seating
• Electronic information screens
• Audio information announcements
• Hearing induction loop (with T-switch)
• Emergency Help point
• Colour contrasted yellow doors
• Announcements when doors close
• Warning tone when doors close
• Air conditioning
